Compatible huntleigh SC750 SC1000 ECG CABLE is a compatible ecg cable supplied by PanSW Med for patient monitor maintenance, replacement, and distributor ordering.
Ask about this product
Send your equipment model, required quantity and destination country. We will help confirm compatibility and availability.
Compatible huntleigh SC750 SC1000 ECG CABLE is a compatible ecg cable supplied by PanSW Med for patient monitor maintenance, replacement, and distributor ordering.
Product Details
Product type: Compatible ECG cable
Compatibility: huntleigh SC750 SC1000 compliance with ANSI/AAMI EC53 EN60601-1 ISO 10993-1 ISO 10993-5 ISO 10993-10 compliance with RoHS
Medical TPU jacket cable with shielded conductor design for stable ECG signal transmission.
AHA/AAMI and IEC color coding options can be supplied according to the requested configuration.
Snap, clip/grabber, and other patient-end options are available when applicable.
Confirm connector style, lead count, color standard, and electrode terminal before ordering.
Part Numbers and Configuration Notes

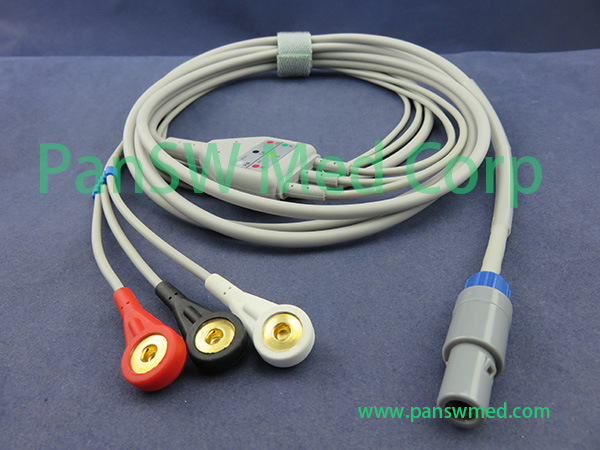

ECG10042A
3-lead, AHA, Snap

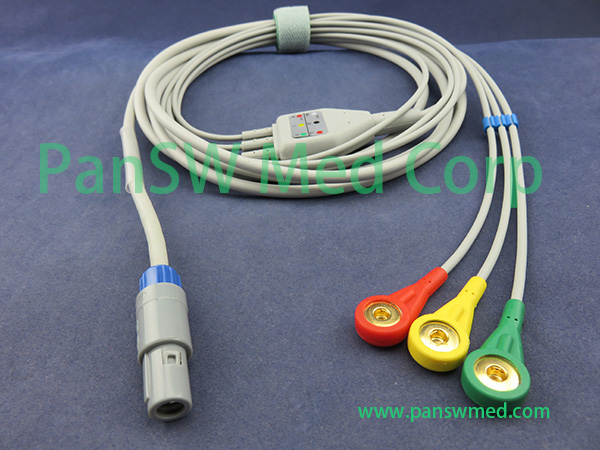

ECG10042B
3-lead, IEC, Snap

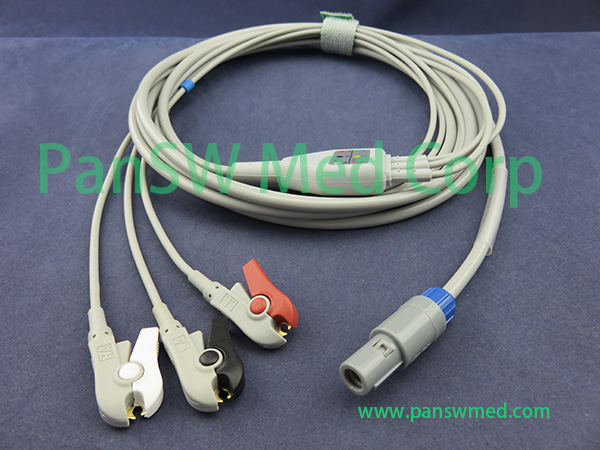

ECG10042C
3-lead, AHA, Clip

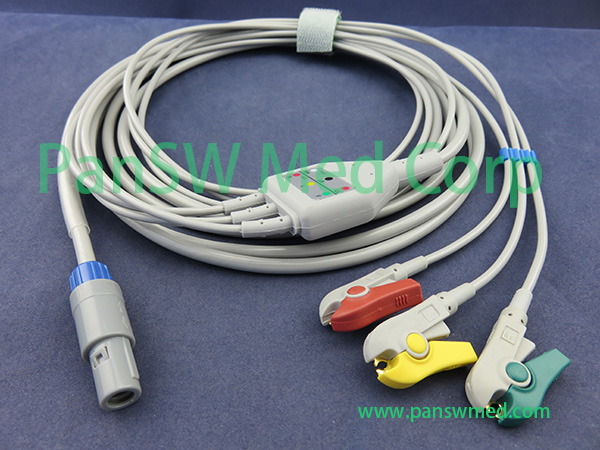

ECG10042D
3-lead, IEC, Clip
Application and Ordering Notes
Used for ECG signal connection between compatible patient monitors/modules and patient-side ECG electrodes. Please confirm monitor model, monitor-side connector, lead count, color standard, cable length, and patient-end terminal before ordering.
