Product details

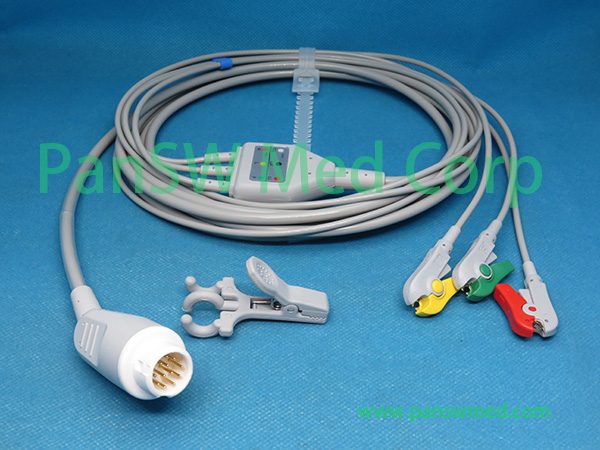

- use with: Mindray PM5000/6000 patient monitor
- 12 pins connector
- Cable length: 2.4 meters main cable
- 0.8 meters for leads
- leads color: both AHA (brown, green, white, black, red)
- IEC (white, yellow, red, black, green) leads are available
- Part No OEM No Description ECG-10058A 3-lead, AHA, Snap ECG-10058B 3-lead, IEC, Snap ECG-10058C 3-lead, AHA, Clip ECG-10058D 3-lead, IEC, Clip ECG-10058E 5-lead, AHA, Snap ECG-10058F 5-lead, IEC, Snap ECG-10058G 5-lead, AHA, Clip ECG-10058H 5-lead, IEC, Clip
Application and order notes
- Confirm the monitor model, connector type, lead count, color code, and terminal style before ordering.
- OEM part numbers are listed only for compatibility reference.
- Custom cable length, lead configuration, or labeling can be discussed before production.
Compliance reference
Materials and finished cable assemblies can be supplied according to commonly requested medical-cable compliance requirements.
- ANSI/AAMI EC53
- EN 60601-1
- ISO 10993-1
- ISO 10993-5
- ISO 10993-10
- RoHS
