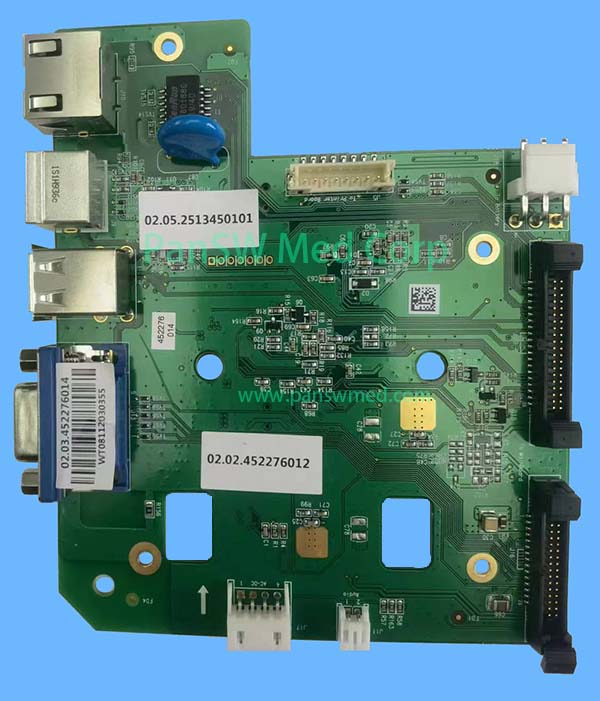

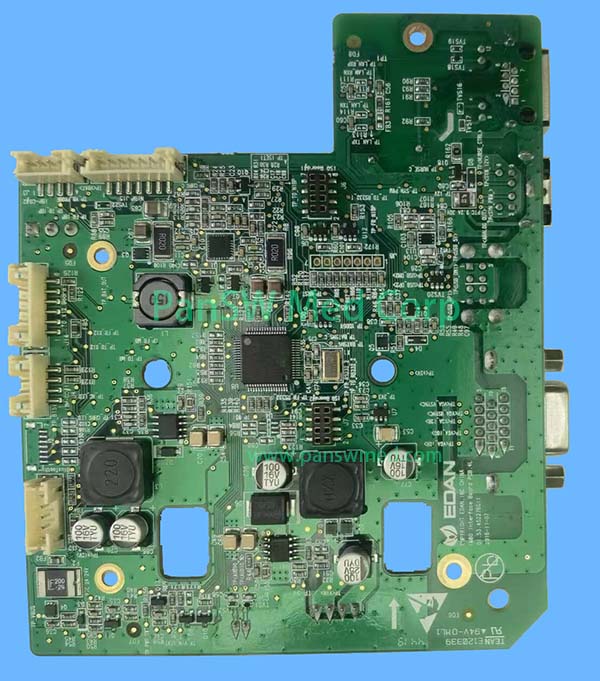

Multifunction interface and adapter board assembly for compatible EDAN iM60, iM70, and iM80 patient monitors. The board provides multiple external I/O ports and internal connectors for communication between monitor subsystems and peripheral interfaces.
Ask about this product
Send your equipment model, required quantity and destination country. We will help confirm compatibility and availability.
Multiple external I/O ports and internal board connectors as pictured
Included Item
One multifunction interface board assembly as pictured
External Cables Included
No
Patient Monitor Included
No
Installation
Professional installation recommended
Condition
Please confirm before ordering
Product Overview
This multifunction interface board is used inside compatible EDAN iM-series patient monitors as an internal I/O and signal-routing assembly. It may replace a board affected by damaged ports, failed communication interfaces, broken connectors, liquid damage, component failure, or intermittent internal connections after qualified diagnosis. The assembly includes the external connectors, internal headers, and board components shown in the photographs. The patient monitor, display, parameter modules, cables, and other internal boards are not included unless specifically confirmed.
Application and Ordering Notes
Before ordering, compare the original board’s complete part number, revision, PCB shape, mounting-hole locations, port types, connector count, connector positions, and component layout with the photographs. EDAN iM60, iM70, and iM80 hardware revisions may use different interface boards, so the model name alone is insufficient for compatibility confirmation.
Quality and Compatibility Notice
Compatibility information is provided for reference. Please verify the exact connector, model, and clinical application before ordering.
