Product information
Specifications
| Brand |
Mindray |
| Compatible Model |
SynoVent E3 B3 E5 B5 |
| Product Type |
Maintenance Part |
| Category |
Machine maintenance parts |
| Note |

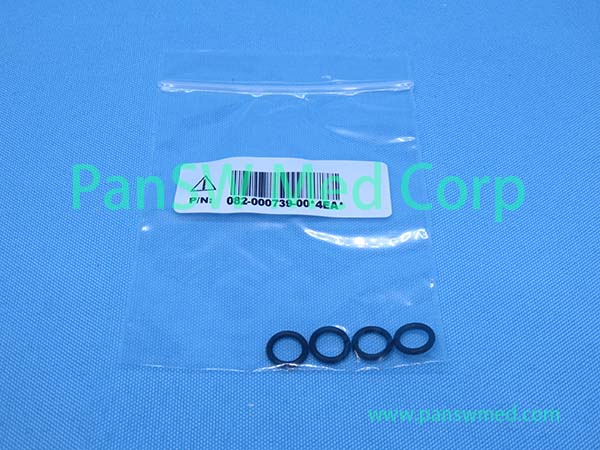

082-000739-00 – Black Viton O-ring, 6.5 × 1.5 mm – Qty. 4 |
| Note |

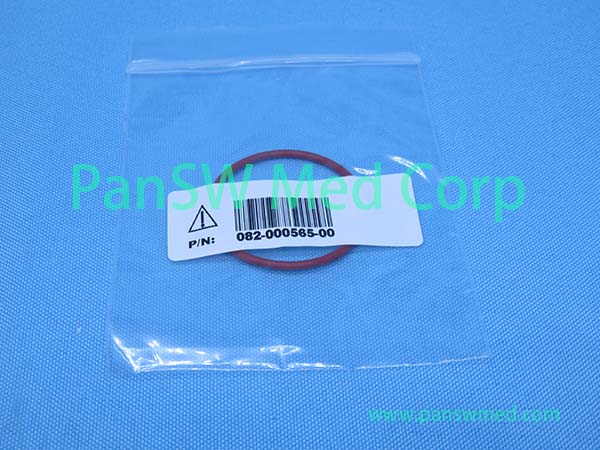

082-000565-00 – Red silicone O-ring, 31.47 × 1.78 mm – Qty. 1 |
| Note |
049-000081-00 – Check-valve diaphragm – Qty. 1 |
| Note |

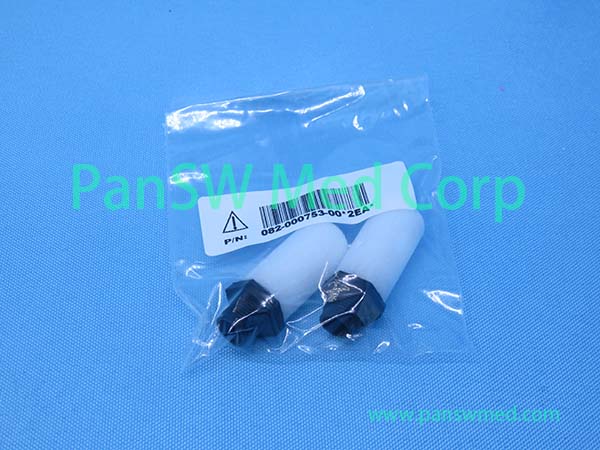

082-000753-00 – 5 μm filter core – Qty. 2 |
| Note |

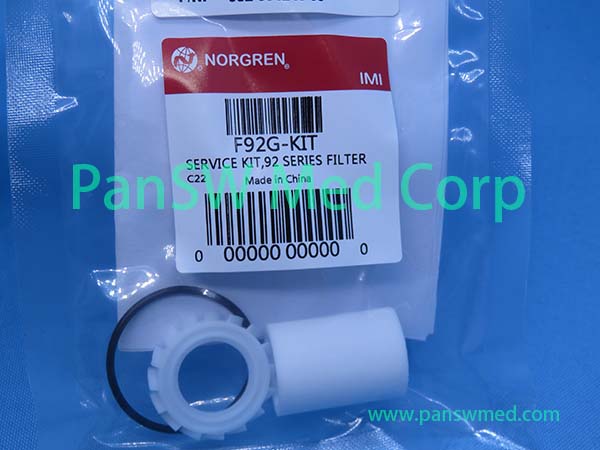

082-001240-00 – F92G-KIT 5 μm filter core – Qty. 1 |
| Note |

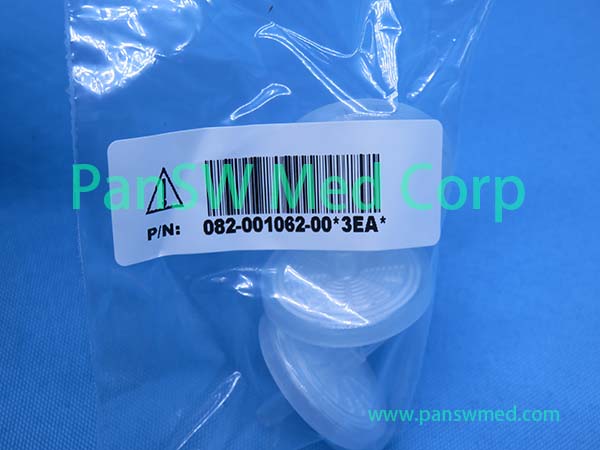

082-001062-00 – 0.22 μm small filter, 25 mm diameter – Qty. 3 |
| Note |

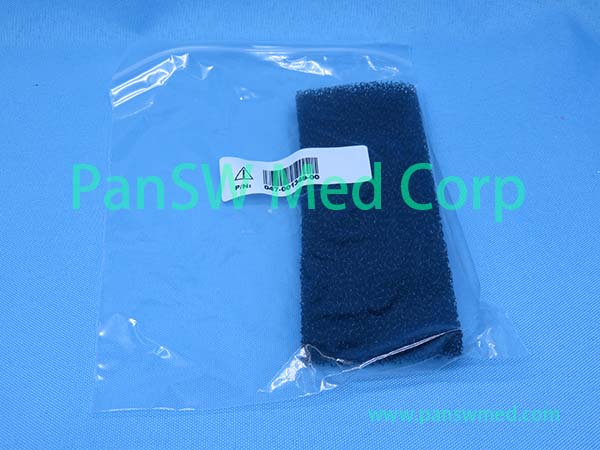

047-001349-00 – PCB-chamber dust filter – Qty. 1 |
Product Overview

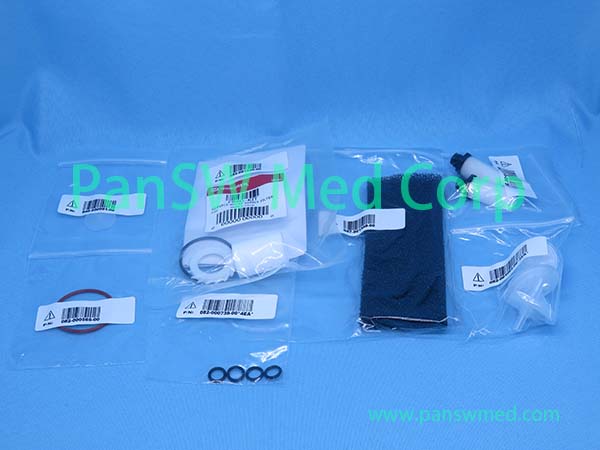

The Mindray 801-VT50-00114-00 is a field-repairable one-year maintenance package for compatible SynoVent ventilators. It contains the filters, seals and other routinely replaced components specified for scheduled annual maintenance. The individual components are packaged and labeled with their corresponding part numbers and quantities. Installation and maintenance should be performed by trained service personnel in accordance with the applicable Mindray service manual.
Application and Ordering Notes
Brand: Mindray
Part number: 801-VT50-00114-00
Part name: One-Year Maintenance Kit
Manufacturer classification: Field Repairable Unit
Equipment type: Ventilator
Compatible family: SynoVent
Referenced models: E3, B3, E5 and B5
Maintenance interval: One year
Number of component types: 7
Total listed component quantity: 13 pieces

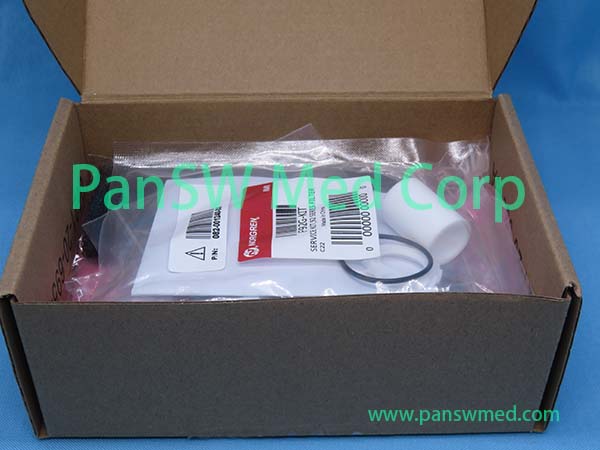

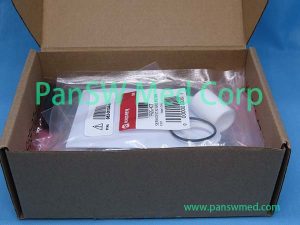

Packaging: Manufacturer-labeled box with individually packaged components
Availability: Please contact PanSW for current stock
Different hardware revisions and regional configurations may use different maintenance packages. Before ordering, please send PanSW the ventilator model, serial number, existing maintenance-kit part number and a clear photo of the equipment label.
The complete kit number must be confirmed as 801-VT50-00114-00. Individual component numbers should also be compared with the required service-parts list before installation.
Quality and Compatibility Notice
Compatibility information is provided for reference. Please verify the exact connector, model, and clinical application before ordering.
