Wired rotary encoder and selector-switch assembly for compatible Mindray BeneHeart D2, D3 and D6 defibrillator/monitors.
Send your equipment model, required quantity and destination country. We will help confirm compatibility and availability.
WhatsApp: +86 136 8886 0726
sales@panswmed.com
| Brand | Mindray |
|---|---|
| Compatible Model | D2 D3 D6 |
| Product Type | Maintenance Part |
| Category | Machine maintenance parts |
| Compatible brand | Mindray |
| Product series | BeneHeart |
| Compatible models | D2, D3 and D6 |
| Product type | Rotary encoder/selector switch |
| Configuration | Wired switch assembly |
| Control shaft | Metal |
| Connection | Attached multi-wire harness and connector |
| Mounting method | Panel mounting with threaded retaining hardware |
| External control knob included | No |
| Control board included | No |
| Complete defibrillator included | No |
| Individual part number | Not visible |

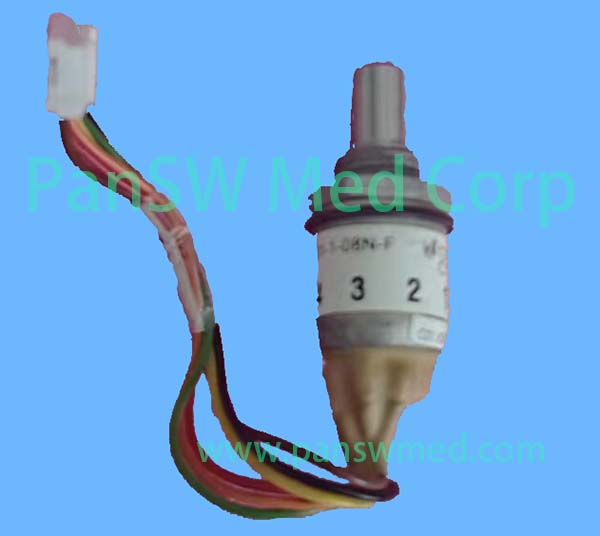

This rotary encoder and selector-switch assembly is intended for the repair of compatible Mindray BeneHeart D2, D3 and D6 defibrillator/monitors. The component incorporates a metal control shaft, multi-position switch body, mounting hardware and attached wiring harness with equipment connector. It is installed behind the equipment’s front control panel and communicates the selected rotary-control position to the associated circuitry. The product supplied is one wired encoder-switch assembly as shown. The external control knob, front panel, control board and complete defibrillator are not included.
Different BeneHeart models and hardware revisions may use switches with similar external appearances but different electrical configurations.
Before ordering, confirm:
Exact BeneHeart model and hardware revision
Switch manufacturer and body markings
Number of rotary positions and detents
Shaft diameter, length and profile
Mounting-thread dimensions
Connector shape and number of contacts
Wire colors and pin assignment
Harness length and routing
Do not determine compatibility only from the external appearance. Please provide photographs of the existing switch, connector and identifying markings if confirmation is required.
Compatibility information is provided for reference. Please verify the exact connector, model, and clinical application before ordering.
Send the model, part number and a clear photo.
