Main control board options for Mindray BeneHeart R3 and R12 electrocardiographs. Multiple PCB designs are shown; confirm the installed board number and layout before ordering.
Send your equipment model, required quantity and destination country. We will help confirm compatibility and availability.
WhatsApp: +86 136 8886 0726
sales@panswmed.com
| Brand | Mindray |
|---|---|
| Compatible Model | R3 R12 |
| Product Type | Maintenance Part |
| Category | Machine maintenance parts |
| Product type | Main control board |
| Compatible brand | Mindray |
| Product family | BeneHeart |
| Compatible models | R3 and R12 |

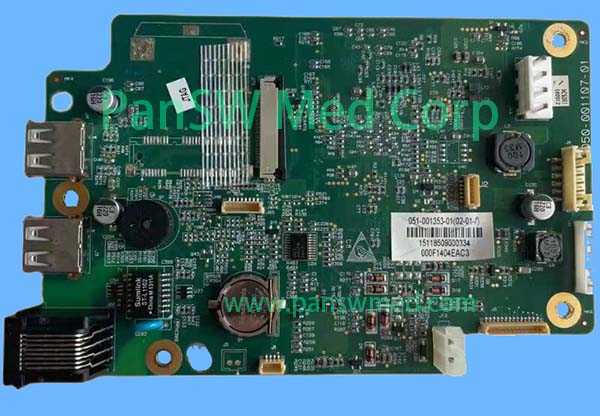

| Image 1 label | 051-001353-01 (02-01-1) |
| Image 1 PCB marking | 050-001107-01 |
| Available versions | Model- and revision-specific PCB designs |
| Application | Electrocardiograph mainboard replacement |
| Condition | Please confirm current availability and condition |

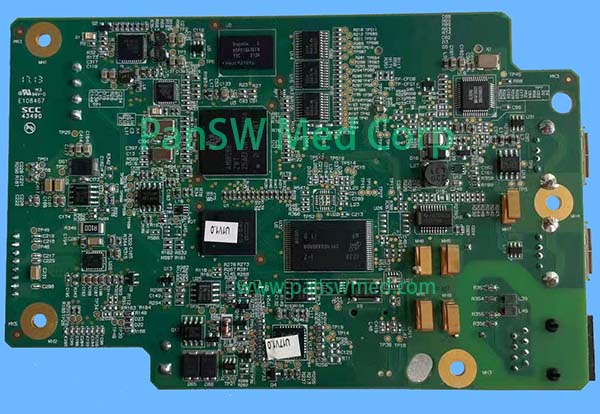

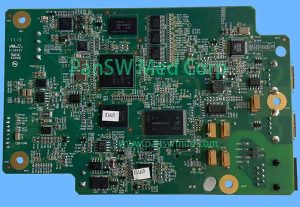

These main control boards are intended for compatible Mindray BeneHeart R3 and R12 electrocardiographs. The photographs show two different PCB designs, indicating model-specific or hardware-revision variants. They should not be treated as the front and reverse sides of one board or assumed to be directly interchangeable. The first photographed board carries identification label 051-001353-01 (02-01-1) and PCB marking 050-001107-01. Please provide photographs and all identification numbers from the original board so that the correct version can be selected.
The pictured boards have substantially different layouts and are not automatically interchangeable. Confirm compatibility using the exact ECG-machine model, complete board number, PCB layout, connector positions, mounting holes and original-board photographs. Configuration or software service may be required after installation.
Compatibility information is provided for reference. Please verify the exact connector, model, and clinical application before ordering.
Send the model, part number and a clear photo.
