Reaction disk temperature acquisition board offered for Mindray BS-400 and BS-420 chemistry analyzers. The pictured board carries label reference BA38-30-88228 and PCB marking BA38-20-88227 V.A.
Send your equipment model, required quantity and destination country. We will help confirm compatibility and availability.
WhatsApp: +86 136 8886 0726
sales@panswmed.com
This board is offered for the reaction disk temperature acquisition function in Mindray BS-400 and BS-420 chemistry analyzers. It serves as a temperature-signal acquisition component within the analyzer's temperature-control system.

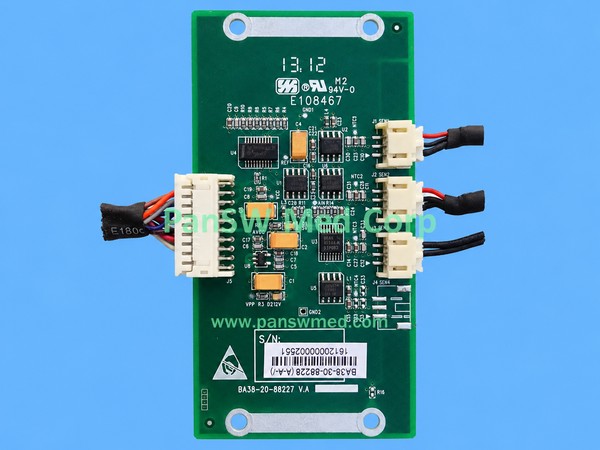

The photographed board has a BA38-30-88228 identification label and a separate BA38-20-88227 V.A marking printed on the PCB.

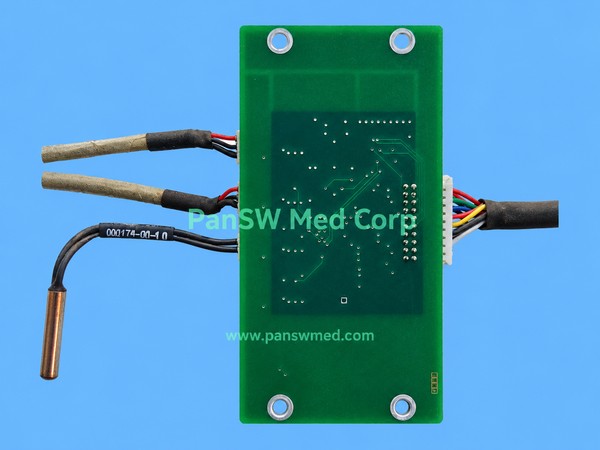

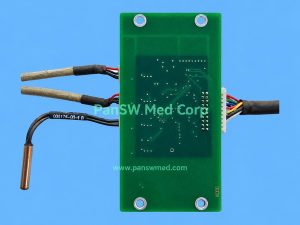

The image shows three connected sensor-side plugs and a larger multipin connection on the opposite side. Confirm the required cable and sensor contents when ordering, as the photograph does not establish the supply scope of a complete assembly.
HERE TO HELP
Confirm the analyzer model, assembly reference, PCB revision, connector arrangement and mounting points against the original board. BA38-20-88227 V.A is the visible PCB marking and should not be substituted for the BA38-30-88228 assembly label reference when identifying the supplied part.
Send the model, part number and a clear photo.
