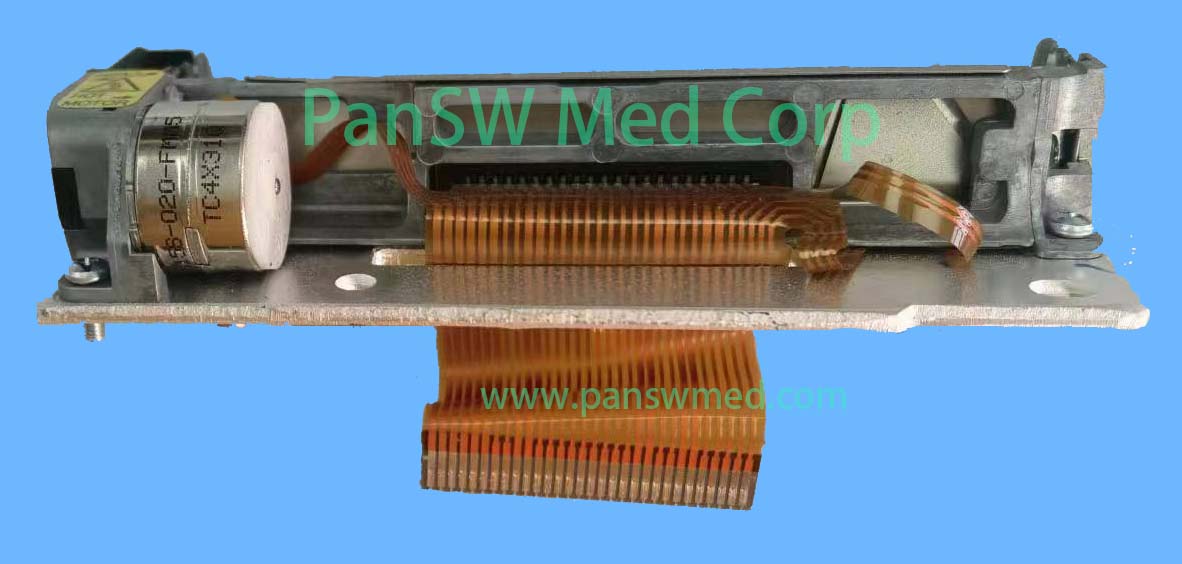

Thermal recording printhead and paper-drive motor assembly for compatible Mindray R3 electrocardiographs. Supplied with the mounting frame and attached flexible circuits shown in the photographs.
Send your equipment model, required quantity and destination country. We will help confirm compatibility and availability.
WhatsApp: +86 136 8886 0726
sales@panswmed.com
| Brand | Mindray |
|---|---|
| Compatible Model | R3 |
| Product Type | Maintenance Part |
| Category | Machine maintenance parts |
| Product Type | Thermal printhead and paper-drive motor assembly |
| Compatible Brand | Mindray |
| Compatible Model | R3 electrocardiograph |
| Print Method | Thermal recording |
| Main Components | Printhead, drive motor, mounting frame, and flexible circuits |

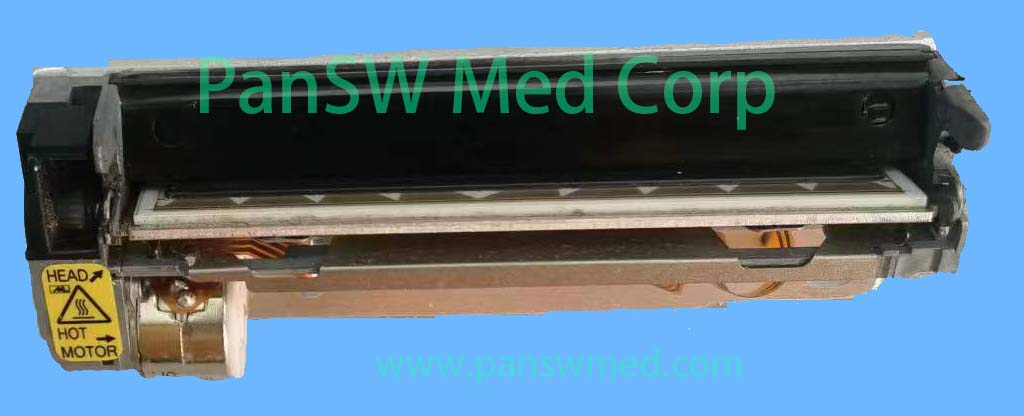

| Visible Safety Label | HEAD HOT / MOTOR |
| Part Number | Not confirmed from the photographs |
| Included Item | One printer mechanism assembly as pictured |
| Installation | Professional installation recommended |
| Condition | Please confirm before ordering |
This internal printer mechanism is used in a compatible Mindray R3 ECG machine to produce waveform and report printouts while driving the recording paper through the printer path. The assembly includes the thermal printhead, drive motor, mechanical mounting frame, and attached flexible circuits visible in the photographs. The printer cover, paper tray, printer controller board, mainboard, and ECG machine are not included unless specifically confirmed.
Before ordering, compare the original printer assembly’s part number, print width, frame shape, mounting points, motor position, flexible-circuit layout, contact count, and connector orientation with the photographs. Mindray R3 hardware revisions may use different printer mechanisms. Confirm whether the fault originates from the printhead, motor, driver board, power supply, or paper path before replacement. Allow the thermal head to cool before handling and avoid scratching or contaminating its heating surface.
Compatibility information is provided for reference. Please verify the exact connector, model, and clinical application before ordering.
Send the model, part number and a clear photo.
