Compatible Mindray ECG Cable 3 Leads AHA Snap - PanswMed

PANSW PRODUCT CATALOGUE

one piece 3-lead ECG cable with leadwire

one piece 3-lead ECG cable with leadwire is a compatible integrated ecg cable / one-piece ecg cable supplied by PanSW Med for patient monitor maintenance, replacement, and distributor ordering.

Ask about this product

Send your equipment model, required quantity and destination country. We will help confirm compatibility and availability.

WhatsApp inquiryEmail inquiryFacebook page

WhatsApp: +86 136 8886 0726
sales@panswmed.com

ECG Cables 3/5 leads

Product information

one piece 3-lead ECG cable with leadwire

one piece 3-lead ECG cable with leadwire is a compatible integrated ecg cable / one-piece ecg cable supplied by PanSW Med for patient monitor maintenance, replacement, and distributor ordering.

one piece 3-lead ECG cable with leadwire

Product Details

  • Product type: Compatible integrated ECG cable / one-piece ECG cable
  • Compatibility: AIR SHIELDS (AIR):HRRM-71-1/2,Porta-Fib I,II,III, System5(new),System6(Neonatal)
  • AMP 6 pin connector; 3-leadwire; terminal:4.0 snap.
  • Compatible with:
  • Medical TPU jacket cable with shielded conductor design for stable ECG signal transmission.
  • AHA/AAMI and IEC color coding options can be supplied according to the requested configuration.
  • Snap, clip/grabber, and other patient-end options are available when applicable.
  • Confirm connector style, lead count, color standard, and electrode terminal before ordering.

Part Numbers and Configuration Notes

Part No OEM No Description
ECG-10009A  0010-30-12246 3-lead, AHA, Snap
ECG-10009B  0010-30-12247  3-lead, IEC, Snap
ECG-10009C 3-lead, AHA, Clip
ECG-10009D 3-lead, IEC, Clip
ECG-10009E 0010-30-12244 5-lead, AHA, Snap
ECG-10009F 0010-30-12245 5-lead, IEC, Snap
ECG-10009G 5-lead, AHA, Clip
ECG-10009H 5-lead, IEC, Clip

Application and Ordering Notes

Used for ECG signal connection between compatible patient monitors/modules and patient-side ECG electrodes. Please confirm monitor model, monitor-side connector, lead count, color standard, cable length, and patient-end terminal before ordering.

Product Images and Available Configurations

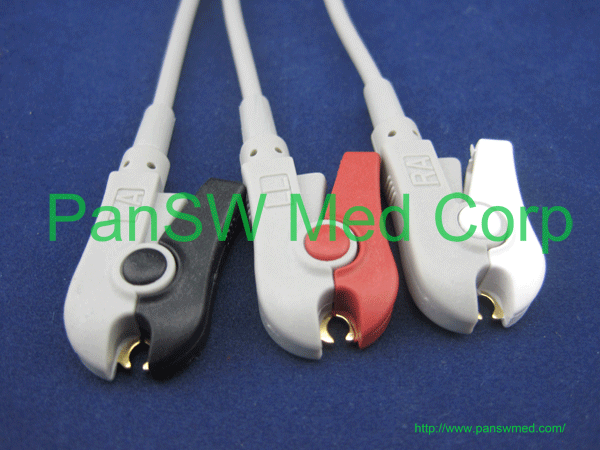

one piece 3-lead ECG cable with leadwire
one piece 3-lead ECG cable with leadwire
one piece 3-lead ECG cable with leadwire
one piece 3-lead ECG cable with leadwire
one piece 3-lead ECG cable with leadwire
one piece 3-lead ECG cable with leadwire
one piece 3-lead ECG cable with leadwire
one piece 3-lead ECG cable with leadwire

Compliance and Quality Notes

  • AIR SHIELDS (AIR):HRRM-71-1/2,Porta-Fib I,II,III, System5(new),System6(Neonatal); ALT (ALT):800,800Plus,CX ATL Ultrasound CX200,CX400,Apogee,HDI 9/2000 Interspec Cardiology XL Mark IV,Mark Vii,Ultramark 4/5/7/9 BCI (BCI):3101,3404,6100,6200, 9100,9200,Advisor,Autocorr COLIN (COLIN):BP308, BP408, CBM3000 ( CSI ):504US,602-4USP,Poet2,Scholar ( GE MEDICAL ):Corometrics 556 Critikon 8100T/Dinamap 8700/9700 ( IVY ):101 (before 1989),402, 700 ( LSI ):LS5, 261 ( MDE ):Escort 100, 101,102,200, 300 Prism, 360SL, 450SL,521A PortaPak 80,PortaPak 90/1000 PHYSIO-CONTROL (MEDTRONIC) (MPC): Lifepak 6, VSM-1ESF (w/resistors) ( NELLCOR ):N-200/250 C-LOCK N-1000,NPB-3900,NPB-4000 ( NIHON KOHDEN ):BSM-8301A/8302A/8500A/8502A OEC-6102A (s/n>20156)/7102A/8108A OEC-6105A (s/n>20226),TEC-7100A TEC-5200A(s/n>20421),TEC-7200A/7300A PACE-TECH ):Minipack 300 Minipack 3000/3100,MiniMax4000CL Vitalmax 800 Plus/2100/2200/4000/4100 Vitalmax/4000CL/4000 Modular/4100CL Philips (PMS ):M3921A A1,M3923A A1 M3925AA1,M3927AA3,M3928A3，M3929AA3 PIONEER (American Optical):26125 33167, 5260, 5330, Pulsar 4 PPG(Datamedix, Becton-Dickinson) Guardian 1001/N1001 ( BURDICK ):Medic3/4/5/4045Defib SPACELABS 500/600/900 Series (w/o respiration) 90300/90400/90600/90700 Series TEK-208/408/511/512/514/521 PC Bedside, PCMS TEKTRONIX (Vitatek):4045Defib/208/400/500Series WELCH ALLYN (Protocol):Propaq100/200Series,Atlas Propaq Encore, Propaq CS,Ultra Smart Zoll 8000-0025 Cable 3 Lead AAMI - 9500-0229-02. Catalog # 8000-0025 or 9500-0229For M Series / PD 1400 / 1200 / 1600 / 1700 / D 900 / 2000 GOLDWAY: UT4000A, UT4000A, UT4000Apro,UT6000A, UT4000B, UT4000C, UT4000F, UT6000F, UT4000Fpro, UT4800
  • compliance with ANSI/AAMI EC53 EN60601-1 ISO 10993-1 ISO 10993-5 ISO 10993-10
  • compliance with RoHS
