Product information
Specifications
| Brand |
Biolight BLT |
| Compatible Model |
M8500 M69 M9000 |
| Product Type |
Maintenance Part |
| Category |
Machine maintenance parts |
| Note |
Item Details |
| Note |
Condition Pre-owned / removed from equipment |
| Note |
Product Type Multiparameter acquisition board |
| Note |
Alternative Names Parameter board, ECG/SpO₂/NIBP board, measurement board |
| Note |
Compatible Brand Biolight / BLT |
| Note |
Applicable Models M8500, M69, M9000 |
| Note |
Equipment Type Multiparameter patient monitor |
| Note |
Supported Parameters ECG/RESP, SpO₂ and NIBP, depending on configuration |
| Note |
Supply Configuration Parameter PCB only unless otherwise confirmed |
| Note |
Installation For trained biomedical service personnel |
Product Overview

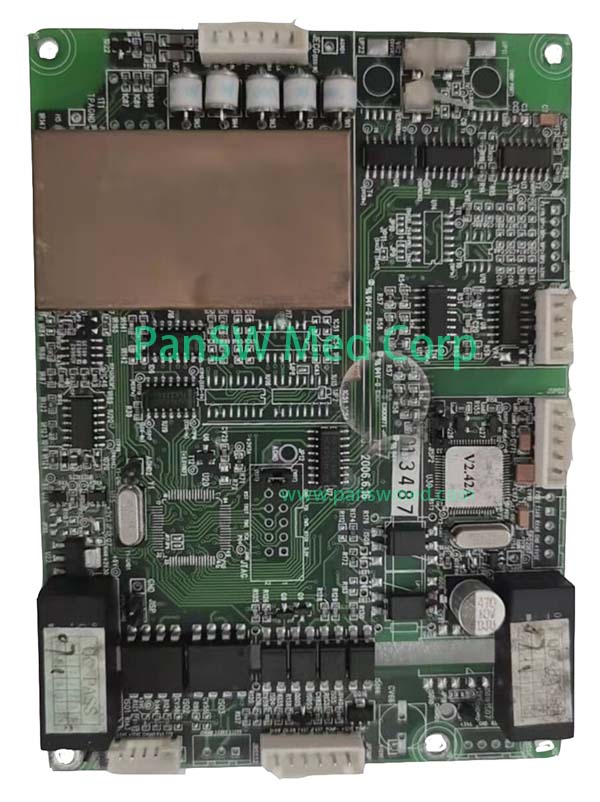

PanSW supplies pre-owned ECG, SpO₂ and NIBP parameter boards removed from compatible Biolight patient monitors. The parameter board provides interfaces and signal-processing circuits for the monitor’s physiological measurement functions. Depending on the board version, it may process ECG and respiration signals, communicate with the SpO₂ sensor circuit, and control or interface with the NIBP pneumatic system. The M8500, M69 and M9000 may use different board revisions and parameter configurations. Compatibility must be determined from the original PCB number, software version, connectors and installed measurement technologies.
Application and Ordering Notes
ECG and Respiration
Interfaces with the ECG input circuitry
Supports ECG waveform and heart-rate signal processing
May support impedance-respiration measurement
SpO₂
Interfaces with the monitor’s pulse-oximetry circuitry
Supports communication with the applicable SpO₂ sensor system
SpO₂ technology and connector type must match the original configuration
NIBP
Interfaces with the NIBP pressure-measurement system
May control the air pump and pneumatic valves
NIBP pump, valves, tubing and cuff connector may be separate components
Important Supply Notice

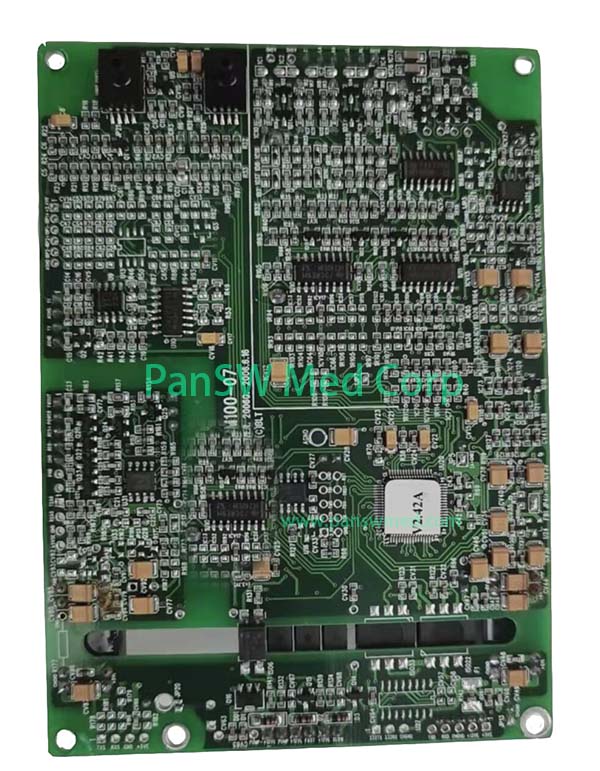

This listing is for the parameter circuit board shown or another specifically confirmed board revision. It does not automatically include:
ECG or SpO₂ input sockets
NIBP pump and valves
Internal cables
Patient cables and sensors
Mainboard or power board
Complete patient monitor
Only the items expressly stated in the quotation are included.
Quality and Compatibility Notice
Compatibility information is provided for reference. Please verify the exact connector, model, and clinical application before ordering.
