Product information
Specifications
| Brand |
Philips |
| Compatible Model |
Efficia DFM100 |
| Product Type |
Maintenance Part |
| Category |
Machine maintenance parts |
| Product type |
Main board / main control board |
| Note |
Philips Efficia DFM100 |
| Note |
Philips HeartStart XL+ |
| Equipment reference supplied |
861290 |
| Condition |
Pre-owned equipment-pull part |
| Included |
One main control board |
| Defibrillation and high-voltage boards |
Not included |
| Display, printer, cables, and housing |
Not included |
| Complete defibrillator-monitor |
Not included |
| Version requirement |
Confirm the board number, connector layout, hardware revision, and equipment configuration |
| Note |
861290 is supplied as an equipment reference and should not automatically be treated as the circuit-board part number |
Product Overview

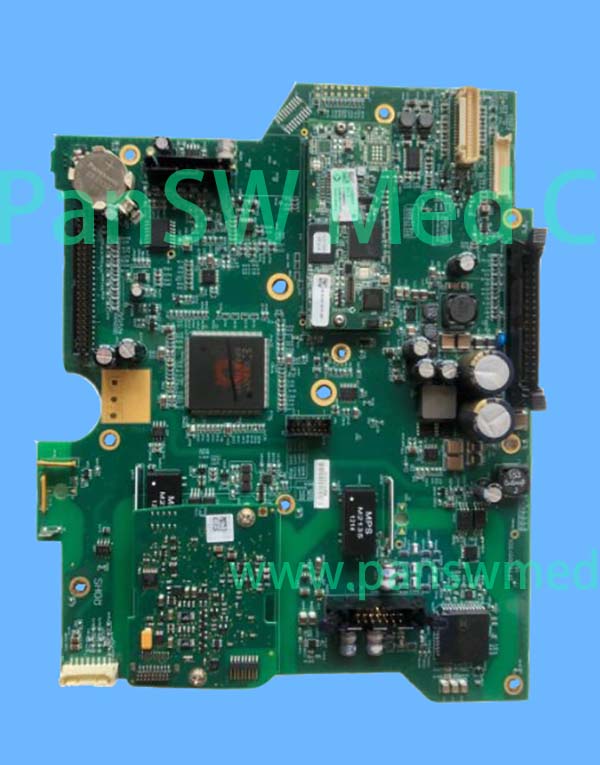

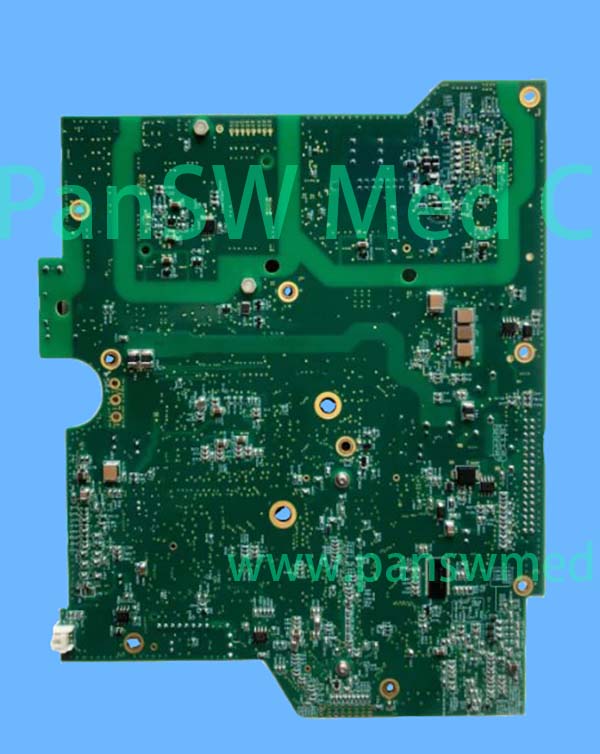

This main control board was removed from a Philips defibrillator-monitor and is offered as a replacement part for equipment maintenance and repair. The board contains the principal processing and control circuitry, internal connectors, power-management components, and installed electronic modules shown in the photograph. The listing covers compatible board versions used with the Philips Efficia DFM100 and HeartStart XL+. Different equipment revisions may require boards with different components, connectors, firmware, or configuration data. The listing includes one main control board only. The defibrillation board, high-voltage components, display, printer, cables, housing, and complete defibrillator are not included.
Application and Ordering Notes
Different hardware revisions, connectors, configurations, and regional versions may exist. Before ordering, please send PanSW the equipment model, serial number, existing part number, and clear photos of the original part and connectors for compatibility confirmation.
Quality and Compatibility Notice
Compatibility information is provided for reference. Please verify the exact connector, model, and clinical application before ordering.
