Product information
Specifications
| Brand |
Schiller |
| Compatible Model |
AT10+, AT10plus, and AT110 |
| Product Type |
Battery Pack |
| Category |
Medical batteries |
| Note |
Item Version 1 Version 2 |
| Note |
Product Schiller ECG Machine Battery Schiller ECG Machine Battery |
| Note |
Compatible Models AT10+, AT10plus, AT110 AT10+, AT10plus, AT110 |
| Note |
Battery Reference 3.920511 3.920509 |
| Note |
Other Part Numbers 02175, 506161, 4.350027C 02175, 506161, 4.350027C |
| Note |
Battery Chemistry Ni-MH Rechargeable Lithium |
| Note |
Voltage 9.6V 21.6V |
| Note |
Capacity 2.5Ah 2.3Ah |
| Note |
Size Please confirm 139 × 58 × 19 mm |
| Note |
Weight Please confirm Approx. 290g |
| Note |
Application ECG machine battery replacement ECG machine battery replacement |
Product Overview

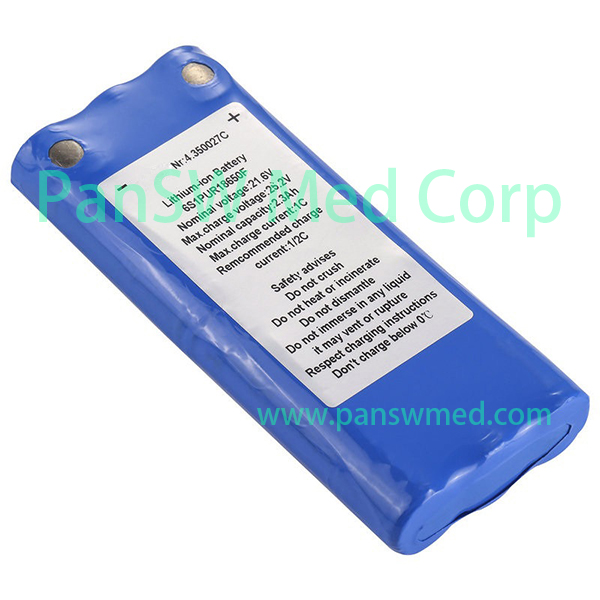

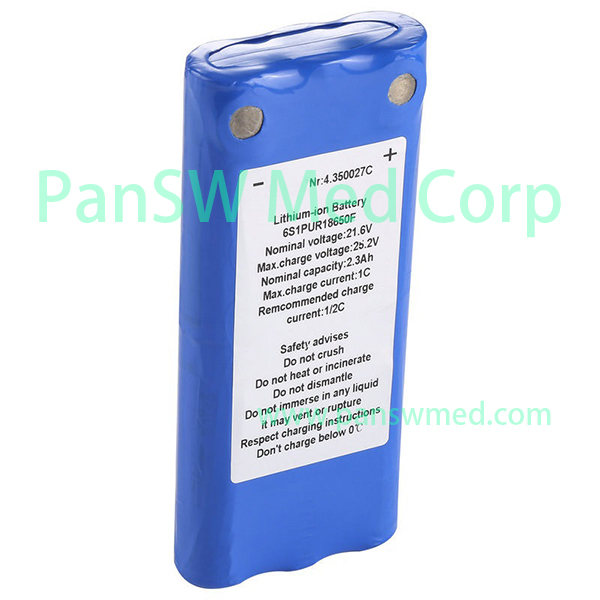

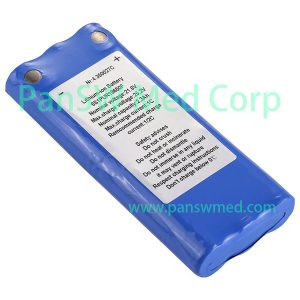

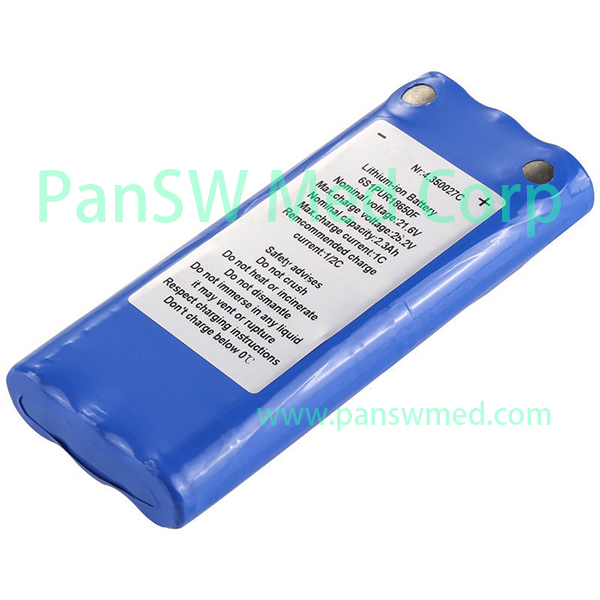

This replacement battery is suitable for compatible Schiller AT10+, AT10plus, and AT110 ECG machine applications. It is designed for professional ECG equipment maintenance, battery replacement, and backup power support. There appear to be two different battery versions for this application, so the original battery label must be confirmed before ordering. One version is listed as a Ni-MH OEM battery, reference 3.920511, rated 9.6V 2.5Ah. Another version is listed as a rechargeable lithium battery, reference 3.920509, rated 21.6V 2.3Ah, with dimensions 139 × 58 × 19 mm and weight approximately 290g. Related part numbers include 02175, 506161, and 4.350027C. Because the voltage and chemistry are very different between the Ni-MH and lithium versions, these batteries should not be treated as automatically interchangeable. Please confirm the ECG model, original battery part number, voltage, chemistry, connector, polarity, and charger compatibility before ordering.
Application and Ordering Notes
Each battery can be checked for voltage, capacity, appearance, connector condition, polarity, and basic charge-discharge performance before shipment.
Quality and Compatibility Notice
Compatibility information is provided for reference. Please verify the exact connector, model, and clinical application before ordering.
