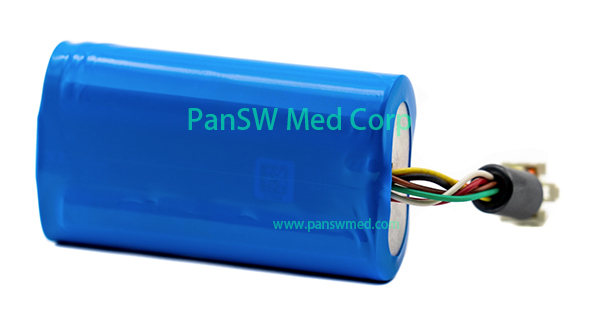

This rechargeable two-cell Li-ion battery is designed as a compatible replacement for selected Welch Allyn Connex Spot monitoring equipment. It provides a nominal voltage of 7.4V, a rated capacity of 3200mAh and approximately 23.7Wh of nominal energy. The official Baxter catalog identifies BATT22 as the two-cell rechargeable lithium-ion battery for the Welch Allyn Connex Spot Monitor. Specifications Battery chemistry: Li-ion Cell configuration: Two-cell battery pack Nominal voltage: 7.4V Rated capacity: 3200mAh Nominal energy: Approximately 23.7Wh Dimensions: Approximately 68.9 × 39.7 × 18.6mm Weight: Approximately 105g Rechargeable: Yes Application: Vital-signs monitor Condition: Compatible replacement battery
Application and Ordering Notes
The official BATT22 battery may be labelled 7.2V, while compatible two-cell Li-ion replacements are frequently labelled 7.4V. This listing is specifically for the 7.4V 3200mAh version.
Do not confuse this battery with the much larger BATT99 10.8V battery used in some Connex stands and other Welch Allyn equipment.
Quality and Compatibility Notice
Compatibility information is provided for reference. Please verify the exact connector, model, and clinical application before ordering.
