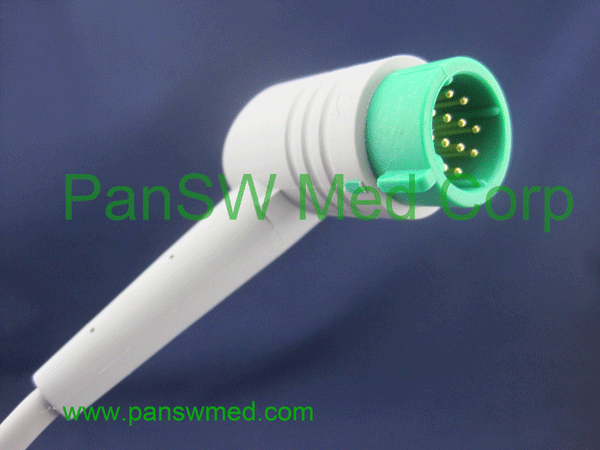

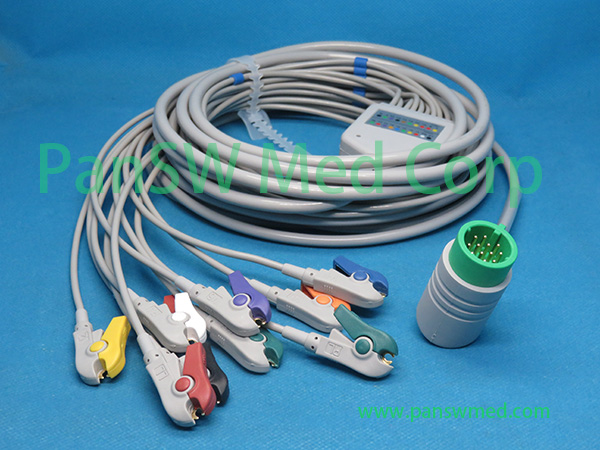

Product >>ECG/EKG cables>>copmatible Medtronic/Physio Control integrated 10 lead ECG cable with leadwire

For description please refer to below

for detailed pictures please click here

Compatible with: Medtronic Physio Control: Lifepak 12
Description: clips end/banana end/snaps end available
Cable length: 2.5 meters main cable and 0.8 meters (chest electrodes); 1.2 meters leadwires (limb electrodes)
Medical TPU jacket wires with dual shielding structure to carefully protect signal;
more details for cable structure here:

All the products types are listed below:

Part No OEM No Description
EKG-10022A    integrated; IEC, DB15M-Din3.0
EKG-10022B    integrated; AHA,DB15M-Din3.0
EKG-10022C   integrated; IEC,DB15M-Banana4.0
EKG-10022D   integrated; AHA,DB15M-Banana4.0
EKG-10022E   integrated; IEC, DB15M-clip
EKG-10022F   integrated; AHA, DB15M-clip
EKG-10022G   integrated; IEC, DB15M-snap
EKG-10022H   integrated; AHA, DB15M-snap

Medtronic EKG cable
Part No OEM No Description

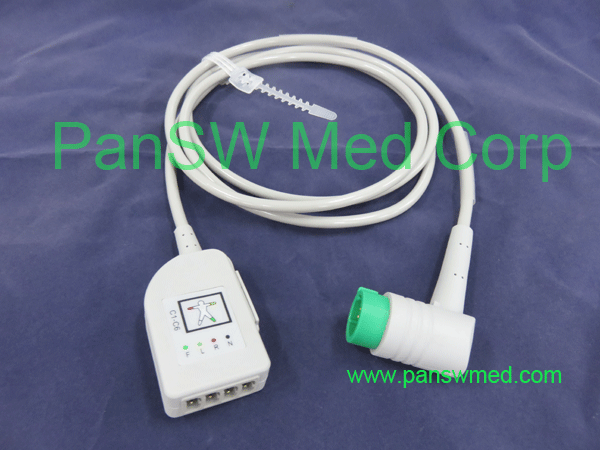

EKG-10049 medtronic ten leads EKG cable trunk

EKG trunk cable for medtronic;

 it works for both

IEC & AHA color;

 cable length 2.2 meters

6 lead set

Part No OEM No Description
EKG-10050A   IEC, -Din3.0
EKG-10050B     AHA, Din3.0
EKG-10050C   IEC, -Banana4.0
EKG-10050D    AHA, -Banana4.0
EKG-10050E   IEC,  clip end
EKG-10050F    AHA, -clip
EKG-10050G    IEC,  snap
EKG-10050H   AHA, -snap

Core technology:

1, All the leads we have longer length to coordinate with bigger size patients without difficulty.

2, the shileidng we have "Super-shield" technology to make it completely grounded and prevent any signal interference even in the complicated OR environment

3, the wires we use bigger size, very durable; surface is convenient for cleaning

4, the banana connector is specifically enhanced to make sure not signal loss even after long time usage.

compliance with
ANSI/AAMI EC53; ICE 60601-1 ISO10993-1 ISO 10993-5 ISO 10993-10

For description please refer to above

for detailed pictures please click here
