Internal display ribbon cable designed to connect the LCD screen assembly to the mainboard of a compatible Biocare iM12 patient monitor.
Send your equipment model, required quantity and destination country. We will help confirm compatibility and availability.
WhatsApp: +86 136 8886 0726
sales@panswmed.com
| Brand | Biocare |
|---|---|
| Compatible Model | iM12 |
| Product Type | Maintenance Part |
| Category | Machine maintenance parts |
| Compatible brand | Biocare |
| Compatible model | iM12 |
| Product type | Internal display connection cable |
| Connection | Display assembly to mainboard |
| Cable type | Flexible ribbon cable assembly |
| Connector type | Multi-pin connectors at both ends |
| Cable protection | Woven protective sleeve |
| Alternative names | LCD ribbon cable, screen cable, display flex cable |
| Installation location | Inside the patient monitor |
| Product condition | Not specified |
| Part number | Not available |
| Supply scope | One display-to-mainboard cable |

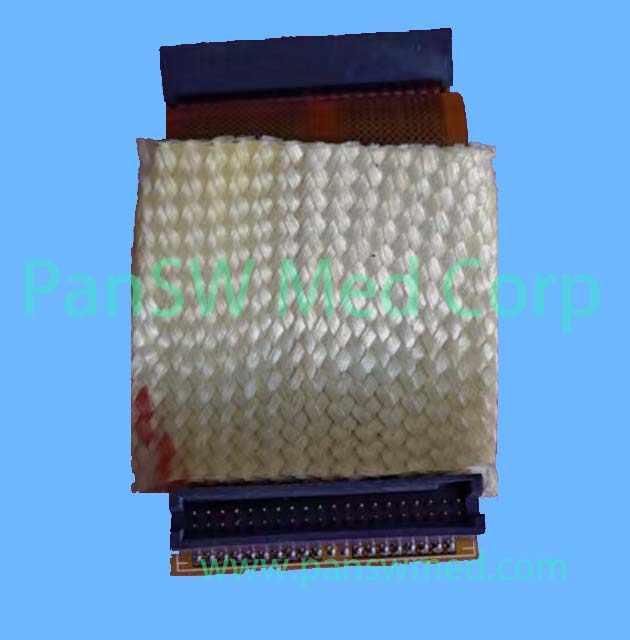

This internal ribbon cable is used between the display assembly and mainboard of a compatible Biocare iM12 patient monitor. It features multi-pin connectors at both ends and a protective woven sleeve around the central cable section. The cable may be used during repairs involving a damaged, loose or intermittent connection between the monitor’s LCD screen and mainboard. It can help address display problems when inspection confirms that the internal screen cable is defective. The product supplied is one cable assembly as shown. The LCD screen, touchscreen, backlight inverter board, mainboard and patient monitor are not included.
Biocare iM12 monitors may use different display assemblies or internal hardware revisions. Before ordering, confirm:
Monitor model is Biocare iM12
Connector shape and pin count at both ends
Connector width and keying arrangement
Cable length and folding direction
Mainboard and LCD screen hardware revisions
Existing cable appearance matches the supplied part
This is a display-to-mainboard cable. It should not be confused with a touchscreen cable, LCD backlight cable or high-voltage inverter board.
Please provide photographs of both connectors and any markings on the existing cable if compatibility confirmation is required.
Compatibility information is provided for reference. Please verify the exact connector, model, and clinical application before ordering.
Send the model, part number and a clear photo.
