Two-Stage CT X-Ray Exposure Hand Switch with Coiled Cable
Two-stage exposure hand switch with a coiled cable and three-wire termination for compatible CT and X-ray imaging equipment. Confirm the wiring sequence and electrical requirements before installation.
Product Overview

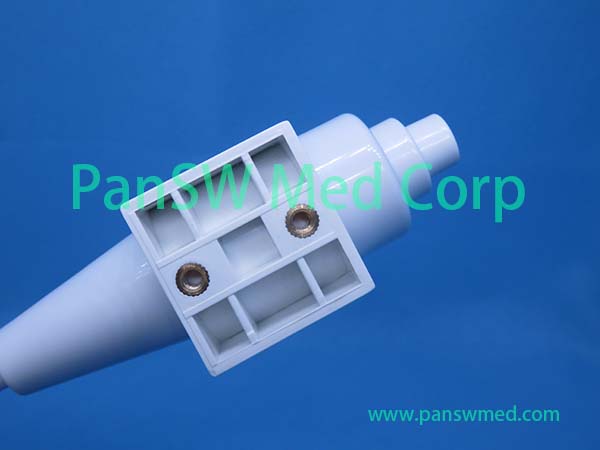

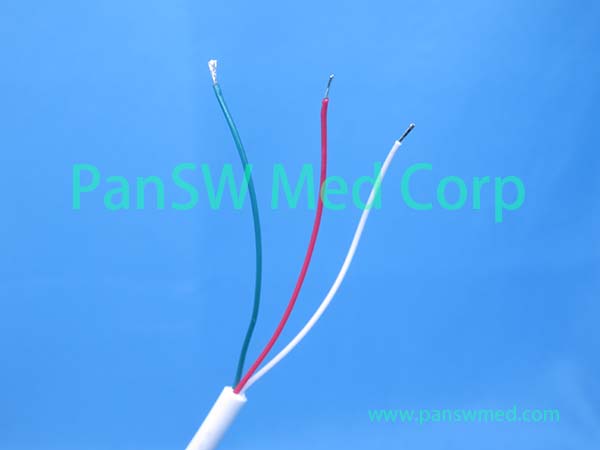

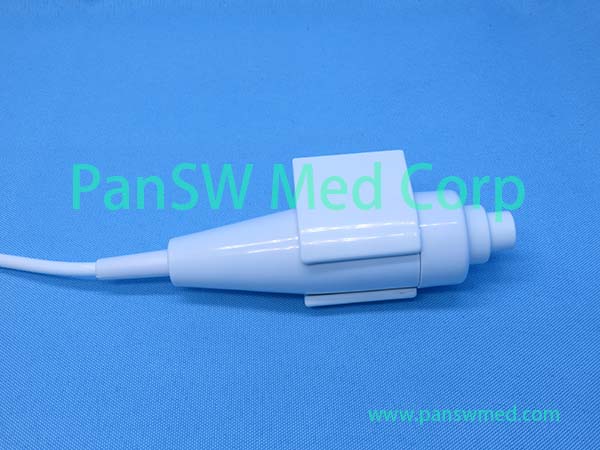

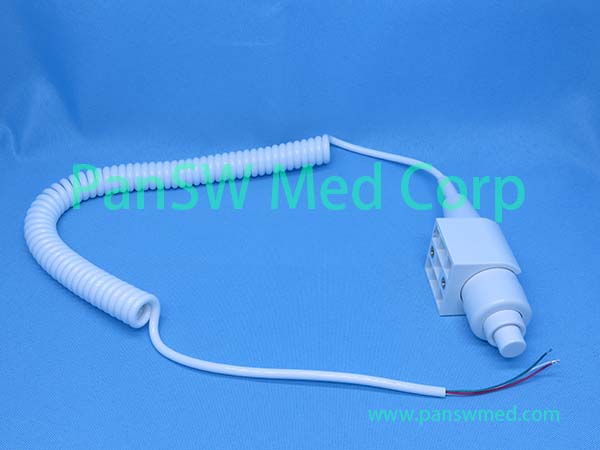

This two-stage hand switch is intended for exposure control on compatible CT and X-ray imaging equipment. A two-stage design typically uses the first stage for preparation and the second stage for exposure activation. The exact operation depends on the equipment’s control circuit. The photographed switch includes a white coiled cable ending in three unterminated conductors. The wire functions must be identified through the equipment documentation or electrical testing; wire colors alone should not be used to determine the common, first-stage and second-stage connections.
Application and Ordering Notes
Different hardware revisions, connectors, configurations, and regional versions may exist. Before ordering, please send PanSW the equipment model, serial number, existing part number, and clear photos of the original part and connectors for compatibility confirmation.
The common, first-stage and second-stage wiring, voltage and current ratings, cable termination, mounting arrangement and dimensions must be confirmed before installation.
Product Gallery
Quality and Compatibility Notice
Compatibility information is provided for reference. Please verify the exact connector, model, and clinical application before ordering.
