Compatible Spacelabs 5-lead ECG trunk cable 700-0008-06 is a compatible ecg trunk cable supplied by PanSW Med for patient monitor maintenance, replacement, and distributor ordering.
Ask about this product
Send your equipment model, required quantity and destination country. We will help confirm compatibility and availability.
Compatible Spacelabs 5-lead ECG trunk cable 700-0008-06 is a compatible ecg trunk cable supplied by PanSW Med for patient monitor maintenance, replacement, and distributor ordering.

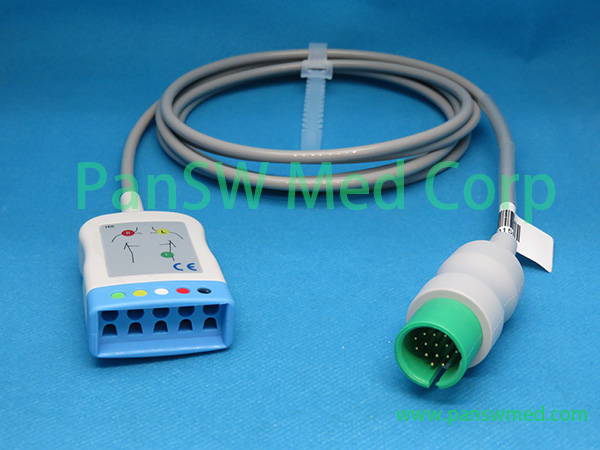

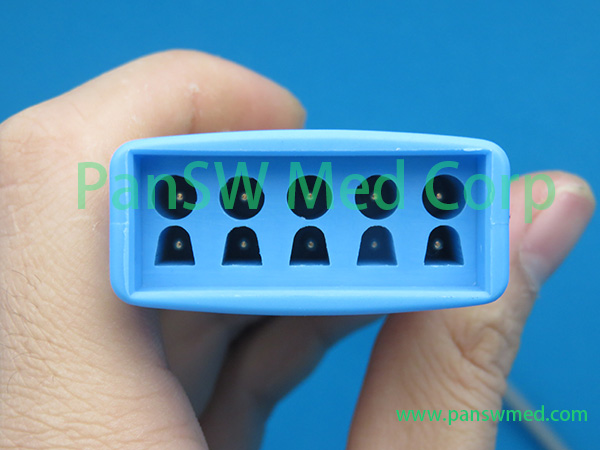

Description: round 17 pin connector; yoke: VS style 5-leadwire. Use with Spacelabs 5 leads ECG leadwire
TPU jacket wires with anti-noise design; dual shielding; flexible and durable;
Compatible with: Spacelabs 90303B, 90367, 90369, 90491, 90496, 90501. original part number: 700-0008-06 (AHA); 700-0008-07(IEC)
ordering part number: XDX-10015A (AHA color); XDX-10015B (IEC color)
Medical TPU jacket cable with shielded conductor design for stable ECG signal transmission.
AHA/AAMI and IEC color coding options can be supplied according to the requested configuration.
Snap, clip/grabber, and other patient-end options are available when applicable.
Confirm connector style, lead count, color standard, and electrode terminal before ordering.
Part Numbers and Configuration Notes
Part No
OEM No
Description
ECG-10017A
700-0008-24
3-lead, AHA, Snap
ECG-10017B
700-0008-25
3-lead, IEC, Snap
ECG-10017C
3-lead, AHA, Clip
ECG-10017D
3-lead, IEC, Clip
ECG-10017E
700-0008-22
5-lead, AHA, Snap
ECG-10017F
700-0008-23
5-lead, IEC, Snap
ECG-10017G
5-lead, AHA, Clip
ECG-10017H
5-lead, IEC Clip
Application and Ordering Notes
Used for ECG signal connection between compatible patient monitors/modules and patient-side ECG electrodes. Please confirm monitor model, monitor-side connector, lead count, color standard, cable length, and patient-end terminal before ordering.
