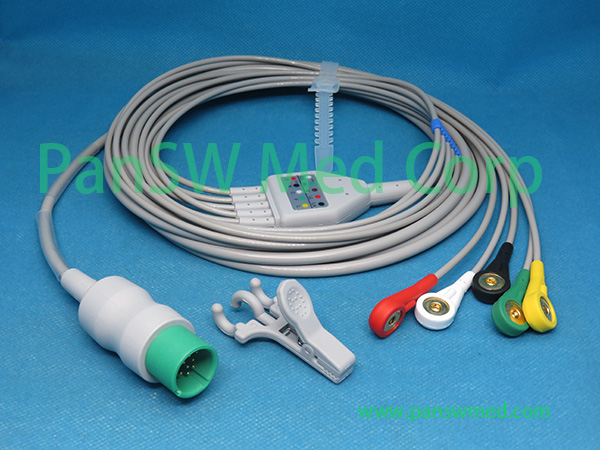

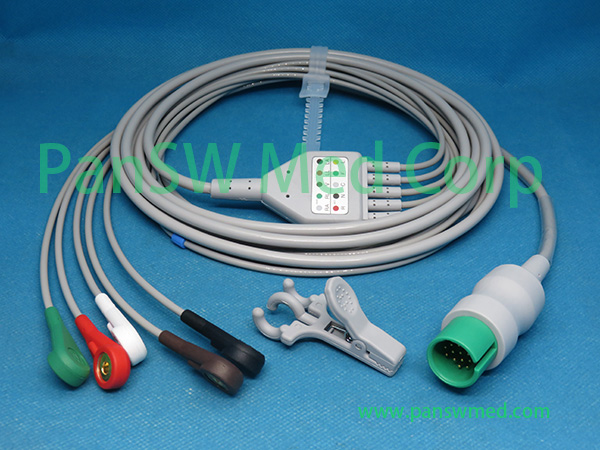

Compatible Spacelabs one piece 5-lead ECG cable with leadwire 700-0008-06

Compatible Spacelabs one piece 5-lead ECG cable with leadwire 700-0008-06 is a compatible integrated ecg cable / one-piece ecg cable supplied by PanSW Med for patient monitor maintenance, replacement, and distributor ordering.

Product Details

Product type: Compatible integrated ECG cable / one-piece ECG cable
Compatibility: Spacelabs 90303B,90367,90369,90491,90496,90501

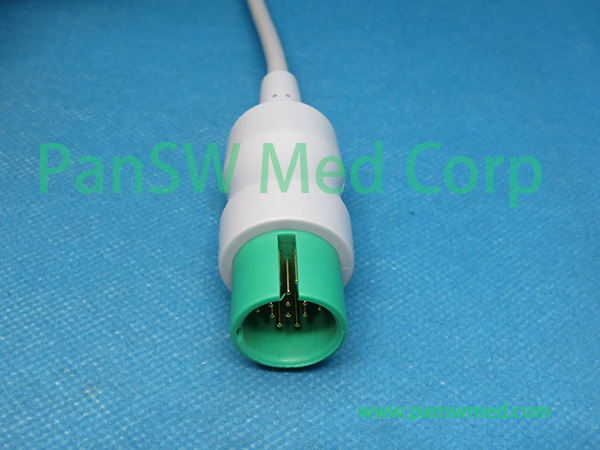

round 17 pin connector; 5-leadwire; terminal: 4.0 snap.
TPU jacket cable with dual shielding structure; cable length: 0.8 meters leads+2.4 meters main cable; Compatible with: Spacelabs 90303B,90367,90369,90491,90496,90501; 91220 MCARE 300 Original part number: 700-0008-06
Medical TPU jacket cable with shielded conductor design for stable ECG signal transmission.
AHA/AAMI and IEC color coding options can be supplied according to the requested configuration.
Snap, clip/grabber, and other patient-end options are available when applicable.
Confirm connector style, lead count, color standard, and electrode terminal before ordering.

Part Numbers and Configuration Notes

Part No	OEM No	Description
ECG-10017A	700-0008-24	3-lead, AHA, Snap
ECG-10017B	700-0008-25	3-lead, IEC, Snap
ECG-10017C		3-lead, AHA, Clip
ECG-10017D		3-lead, IEC, Clip
ECG-10017E	700-0008-22	5-lead, AHA, Snap
ECG-10017F	700-0008-23	5-lead, IEC, Snap
ECG-10017G		5-lead, AHA, Clip
ECG-10017H		5-lead, IEC Clip

Application and Ordering Notes

Used for ECG signal connection between compatible patient monitors/modules and patient-side ECG electrodes. Please confirm monitor model, monitor-side connector, lead count, color standard, cable length, and patient-end terminal before ordering.
