PANSW PRODUCT CATALOGUE

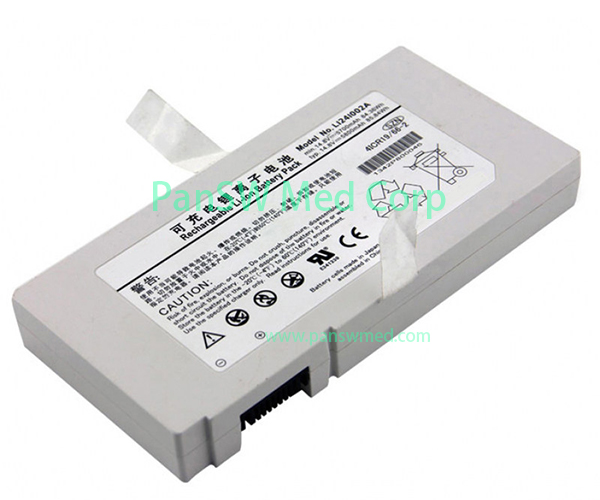

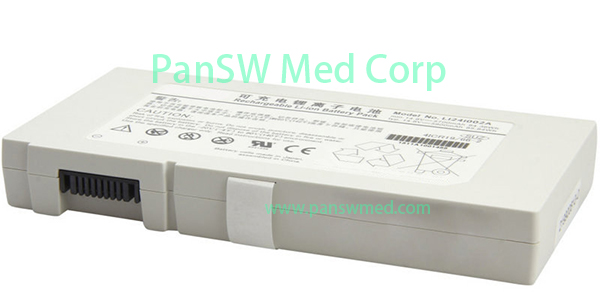

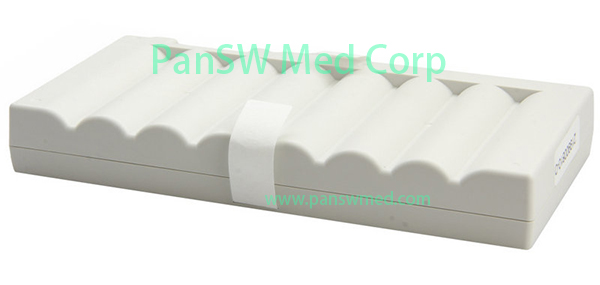

Rechargeable 14.8V 5700mAh Li-ion replacement battery for selected Mindray M8, M9 and TE7 ultrasound systems and the Mindray SV300 ventilator. Compatible with LI24I002A.
Send your equipment model, required quantity and destination country. We will help confirm compatibility and availability.
WhatsApp: +86 136 8886 0726
sales@panswmed.com
| Brand | Mindray |
|---|---|
| Compatible Model | M8, M9, TE7 and SV300 |
| Product Type | Battery Pack |
| Category | Medical batteries |
| Battery chemistry | Li-ion |
| Nominal voltage | 14.8V |
| Rated capacity | 5700mAh / 5.7Ah |
| Nominal energy | 84.36Wh |
| Color | White |
| Dimensions | Approximately 156 × 78 × 22mm |
| Weight | Approximately 461g |
| Rechargeable | Yes |
| Applications | Ultrasound system and ventilator |
| Condition | Compatible replacement battery |
This rechargeable lithium-ion battery is designed as a compatible replacement for selected Mindray ultrasound systems and ventilators. Compatible equipment includes the Mindray M8, M9 and TE7 ultrasound systems and the Mindray SV300 ventilator. It provides a nominal voltage of 14.8V, a rated capacity of 5700mAh and 84.36Wh of nominal energy. The battery measures approximately 156 × 78 × 22mm and weighs approximately 461g. An independent product reference confirms the 14.8V, 5.7Ah, 84.36Wh specification for LI24I002A. Specifications Battery chemistry: Li-ion Nominal voltage: 14.8V Rated capacity: 5700mAh / 5.7Ah Nominal energy: 84.36Wh Color: White Dimensions: Approximately 156 × 78 × 22mm Weight: Approximately 461g Rechargeable: Yes Applications: Ultrasound system and ventilator Condition: Compatible replacement battery
LI24I002A replacement batteries are available in several capacities, including approximately 5600mAh, 5700mAh, 5800mAh and higher-capacity versions. Their dimensions, weight, casing color and internal communication circuitry may differ.
Compatibility information is provided for reference. Please verify the exact connector, model, and clinical application before ordering.
Send the model, part number and a clear photo.
