for detailed pictures gallery please click here:

Descriptions as below

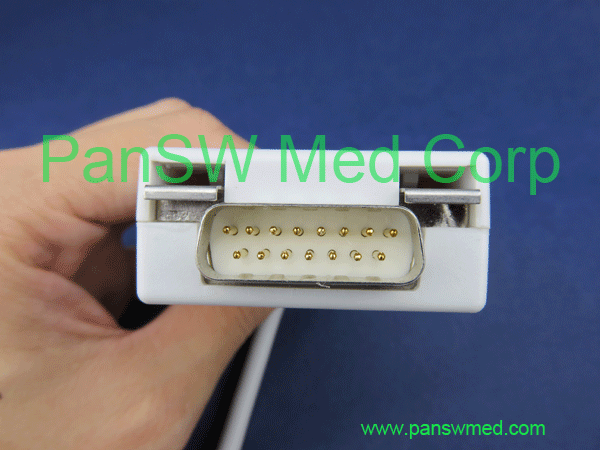

Description: Connector: DB 15pin male connector; Medical TPU jacket; shielded cable; anti-noise design; gold plated pins; more details about cable structure:
Compatibile with : Fukuda FCP-7411, FX-7402, FX-7202, FX-2111,FX-2155, FX-3010, FX-7102

AHA/IEC color coding, banana end, clips end, snaps end etc available; Please refer to the following list for detailed products;

Part No	OEM No	Description
EKG-10009A	FX-101	integrated; IEC, DB15M-Din3.0
EKG-10009B		integrated; AHA,DB15M-Din3.0

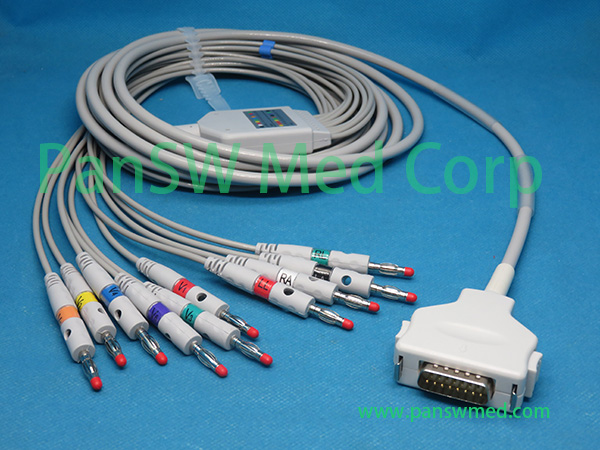

EKG-10009C		integrated; IEC,DB15M-Banana4.0
EKG-10009D		integrated; AHA,DB15M-Banana4.0
EKG-10009E		integrated; IEC, DB15M-clip
EKG-10009F		integrated; AHA, DB15M-clip
EKG-10009G		integrated; IEC, DB15M-snap
EKG-10009H		integrated; AHA, DB15M-snap

for detailed pictures gallery please click here:

Descriptions as above

Core technology:

1, All the leads we have longer length to coordinate with bigger size patients without difficulty.

2, the shileidng we have "Super-shield" technology to make it completely grounded and prevent any signal interference even in the complicated OR environment

3, the wires we use bigger size, very durable; surface is convenient for cleaning

4, the banana connector is specifically enhanced to make sure not signal loss even after long time usage.

compliance with
ANSI/AAMI EC53; ICE 60601-1 ISO10993-1 ISO 10993-5 ISO 10993-10

pinout of Fukuda Denshi ECG cable ten leads; IEC color
