Product >>Patient Monitor Products>>compatible HP Philips AA M1635A five lead patient monitor ECG leadwire

ECG leadwire

Description: AA 2pin round connector; terminal: snap; IEC/AHA;
TPU jacket cable; shielded structure; anti-noise design; cable length: 1 meter;

Compatible with: HP78352C, 78354C,78834C,M1020A,M1205A,M2475A,M2475B, M3,M5.
Original part number: M1635A(IEC); M1625A (AHA/AAMi)

The following options are available:
original part number PanSW Part number description
M1625A ETC-10020J HP 5-Leadwires,snap,AHA

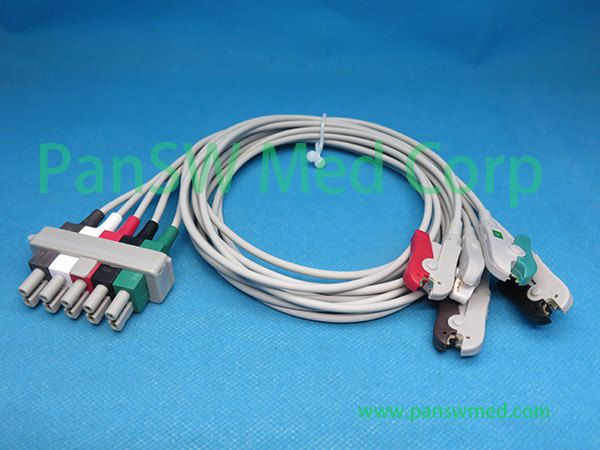

M1623A ETC-10020K HP 5-Leadwires,Clip,AHA
M1635A ETC-10020M HP 5-Leadwires,Snap,IEC
M1633A ETC-10020N HP 5-Leadwires,Clip,IEC



Use with HP Philips 5 leads trunk cable;

HP Philips ECG connector view
connector view (IEC color coding)

Use with HP Philips ECG trunk cable (original part number: M1520A/M1530A)
