Product >>ECG/EKG cables>>compatible Siemens Hellige Cardiosmart 10 leads EKG cable

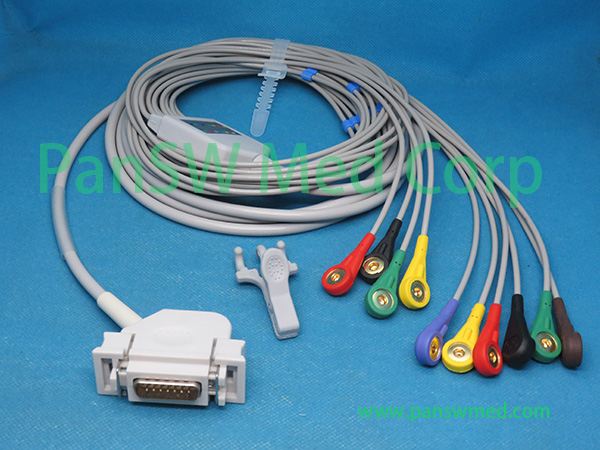

Siemens one piece ten lead ECG cable with leadwire

Description:
main cable length: 2.5 meters; leadwire length: 0.8 mm for chest leads; 1.2 meters for limb leads;
D-sub 15 pins connector with Hellige clips connector;
Medical TPU cable; completed shielded from machine connector to patient connector; anti-noise design;


Compatible with:

Bosch:603 D, 603 ER, 603 S, 606
Cambridge: CM 6000, CM 6400
Custo-med: Custo-card
DEGO: Cardiomed 3

Hellige: EK 36, EK 41, EK 43, EK 53,
EK 56, EK 403, EK 413, EK 512, EK 512 E,
EK 512 P, Cardiosmart, CardioSys, Corna

Siemens:Cardiostat1/3T/703/710/31/31S
Cardina C, Cardirex 3T/4/6T/62, Cathcor,
Megacard Elema A/B, R, R/E, Mingodoc,
Mingocard 3 / 4 / 7, Mingograph 4 / 62 / 81
Mingograph 82 / 740, Mingolog 7,
Mingophon 3/7/310/410/420/710/720,
Miracard 1, Sirecard440/440S/460/460S/740
Siereg, Sirecard 803, Sirecust 701
Megacart;

Von Berg:Bioset3500/3600/3700/6000/8000

compliance with
ANSI/AAMI EC53; ICE 60601-1 ISO10993-1 ISO 10993-5 ISO 10993-10

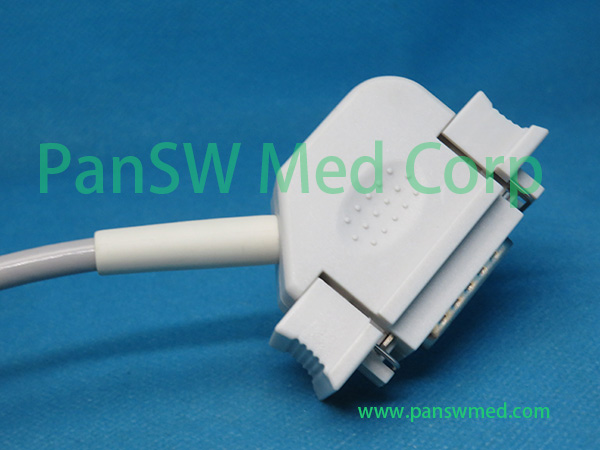

Siemens Hellige EKG cable connector
Hellige clip connector view 1

Siemens Hellige ECG connector view
connector view 2

all types available: clips, snaps, banana, DIN; IEC/AAMI/AHA color coding are available; for detailed products codes please review the list below:

Part No OEM No Description
EKG-10021A    integrated; IEC, DB15M-Din3.0
EKG-10021B    integrated; AHA,DB15M-Din3.0
EKG-10021C   integrated; IEC,DB15M-Banana4.0
EKG-10021D   integrated; AHA,DB15M-Banana4.0
EKG-10021E   integrated; IEC, DB15M-clip
EKG-10021F   integrated; AHA, DB15M-clip
EKG-10021G   integrated; IEC, DB15M-snap
EKG-10021H   integrated; AHA, DB15M-snap

cable diagram
Cable diagram for IEC color;

Core technology:

1, All the leads we have longer length to coordinate with bigger size patients without difficulty.

2, the shileidng we have "Super-shield" technology to make it completely grounded and prevent any signal interference even in the complicated OR environment

3, the wires we use bigger size, very durable; surface is convenient for cleaning

4, the banana connector is specifically enhanced to make sure not signal loss even after long time usage.

multi use adapter to use with disposible electrodes...

ten leads ECG connector banana to adapter to disposible ecg electrodes


Related products:
compatible Hellige EK51 ECG cable compatible Siemens Cardiostat 31 ECG cable compatible Burdick Eclipse EKG cable
schiller ECG cables Siemens Cardiostat 31 EKG cable Burdick Eclipse EKG cable
Suction ball ECG electrode Limb clamps ECG electrode

universal flat clip adapter banbana to ecg electrodes

suction balls ecg electrode ecg electrode limb clamp ECG electrodes adapter

Why us?

  • 1, Complete products database (For the models not found here, pls contact Pan-SW for help.)
    2, Reliable quality, best materials;
    3, Cost-effective, fast and reliable transportation
    4, Responsible, fast after sales service.
    5, Competitive price.
    6, Experienced in OEM/ODM, with retail & wholesale acceptable.

  • More about PanSW service

  • Declaration: All the trademarks mentioned in this website are for citation purpose only. PanSW does NOT sell any original accessories from any other brand except for PanSW. PanSW manufactures and sells generic products compatible with other brands only
